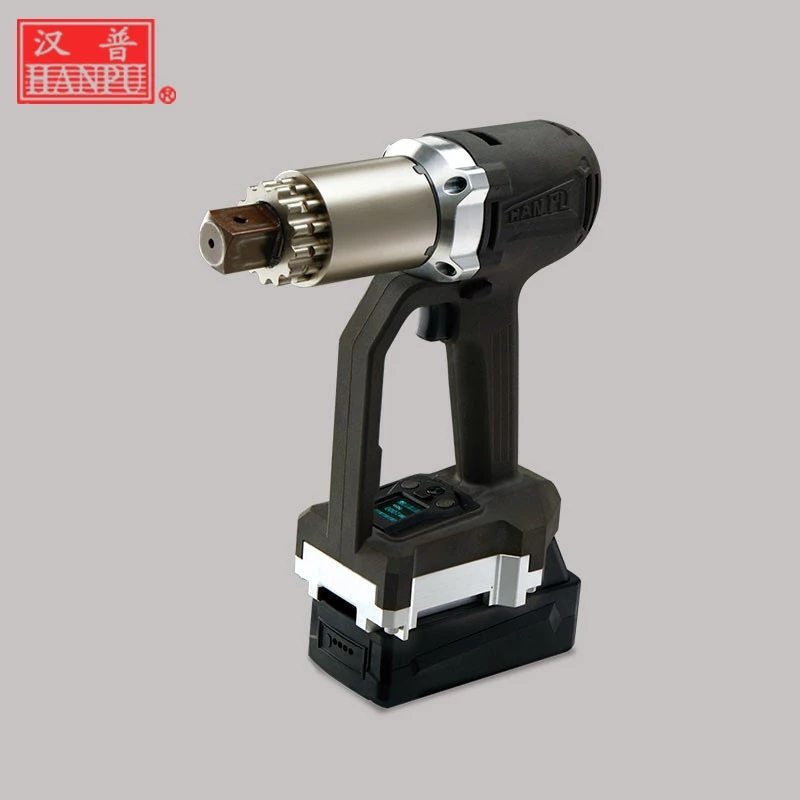

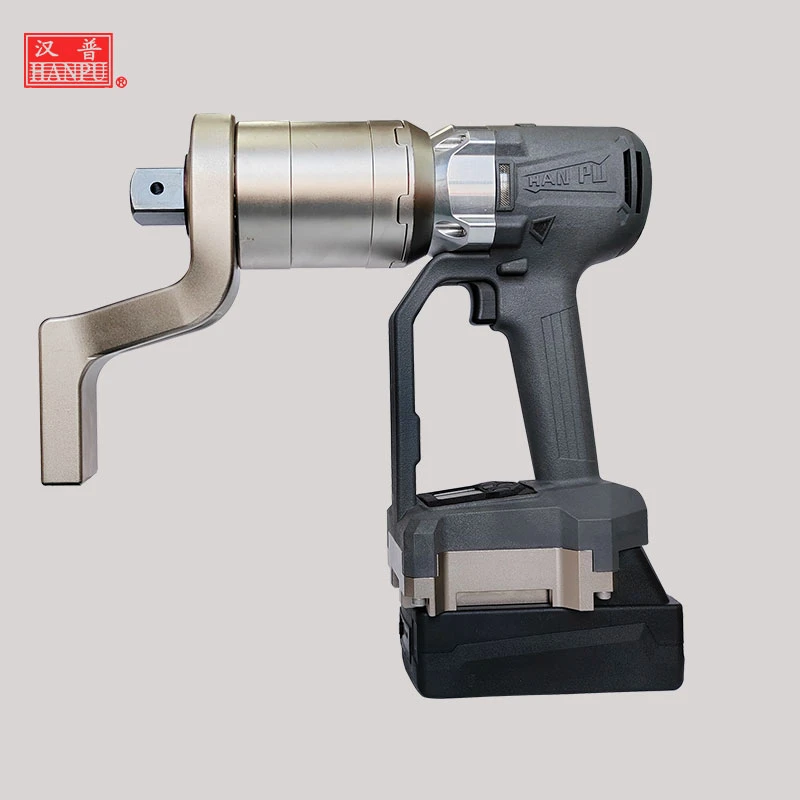

High-Precision Brushless Electric Torque Wrench
±3% accuracy and massive 8,000 N·m torque—the DS-8000 brushless electric wrench takes "stability" and "raw power" to the extreme.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
| Model | Torque Range (N.m) |
Ro Speed (min-1) | Weight (main body) |
Square Drive |
| DS-300 | 30-300nm (22-221lbs.ft) |
60rpm | 3KG | 19*19mm (3/4"*3/4") |
| DS-900 | 100-900nm (74-664lbs.ft) |
23rpm | 3.7KG | 19*19mm (3/4"*3/4") |
| DS-1500 | 200-1500nm (147-1107lbs.ft) |
15rpm | 4KG | 25.4*25.4mm (1"*1") |
| DS-2500 | 300-2500nm (221-1845lbs.ft) |
8rpm | 5.6KG | 25.4*25.4mm (1"*1") |
| DS-4000 | 400-4000nm (295-2952lbs.ft) |
5rpm | 6KG | 38*38mm (1-1/2"*1-1/2") |
| DS-6000 | 1000-6000nm (738-4428lbs.ft) |
3rpm | 8KG | 38*38mm (1-1/2"*1-1/2") |
| DS-8000 | 1500-8000nm (1107-5904lbs.ft) |
2.4rpm | 9.5KG | 38*38mm (1-1/2"*1-1/2") |
What is the biggest concern in high-torque operations? Insufficient torque leads to loose fasteners and costly rework, while torque overshoot causes bolt elongation or even breakage, resulting in scrapped parts. The DS-8000 brushless electric wrench strikes the perfect balance between these extremes: with a broad torque range of 1,500 to 8,000 N·m and ±3% accuracy, it delivers raw power when needed and precision stability when required.
The brushless motor is the heart of this machine. Free from carbon brushes and electrical sparking, it offers a lifespan and level of stability far superior to traditional brushed motors. Built to withstand the dusty, demanding conditions of job sites, the brushless motor handles prolonged, continuous operation with ease-eliminating the need for frequent carbon brush replacements.
Significant effort has also gone into the user experience. An OLED display provides real-time feedback on torque and angle data, with independent control over both parameters-allowing for continued rotation by a set angle after the target torque is reached. This "torque plus angle" dual-control mode is particularly crucial for critical bolt-tightening applications. Upon reaching the target value, the reaction arm disengages automatically, eliminating the need for manual intervention and saving a step in the workflow.
Weighing just 9.5 kg, the tool is easily handled by a single operator. A full charge supports the tightening of 70 M52 bolts, meaning a battery swap is generally unnecessary during a standard workday. Optional data storage and upload functions enable one-touch quality traceability and construction record-keeping.
Looking to make your bolt-tightening operations both efficient and standardized? Contact us, and we will provide the ideal solution for your needs.
