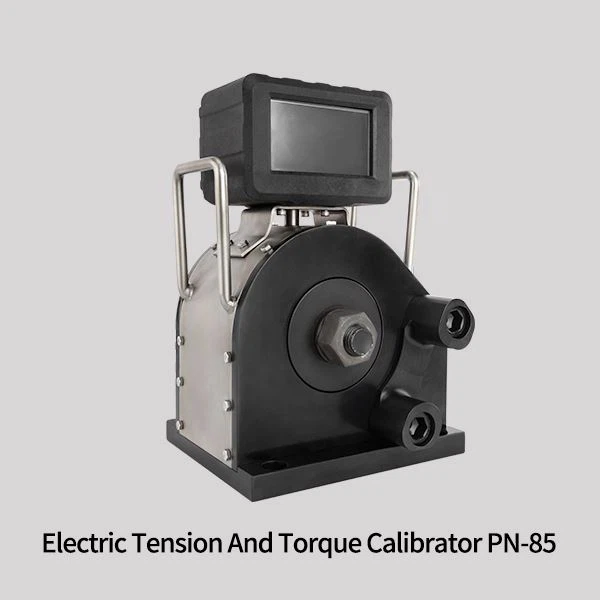

Digital Torque Testers

In practical applications, the Electric Tension &Torque Calibrator is used to test and verify electric wrenches. It’s verification accuracy is very high. It mainly detects the torque value and axial force value of high-strength bolt，The calibrator has a dual sensor design for torque and axial force. It also equipped with a touch liquid crystal display, on which we can easily see the torque value and tension force value. It is also called “Digital Torque Tester”. This Digital Torque Tester can automatically calculate the friction coefficient too.

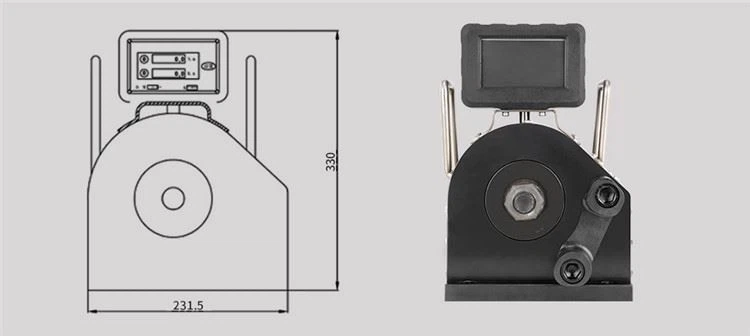

Electric Tension &Torque Calibrator PN-85 Line Drawing

Model : PN-85

Torque Range : 50-5000N.M

Tension Range : 0-800KN

Accuracy : ±2%

Weight (Main Body) : 28.0KG

Applicable Bolt : M16(5/8’’), M20(3/4’’), M22(7/8’’), M24(1’’), M27(1-1/8’’), M30(1-1/4’’), M33(1-3/8’’), M36(1-1/2’’)

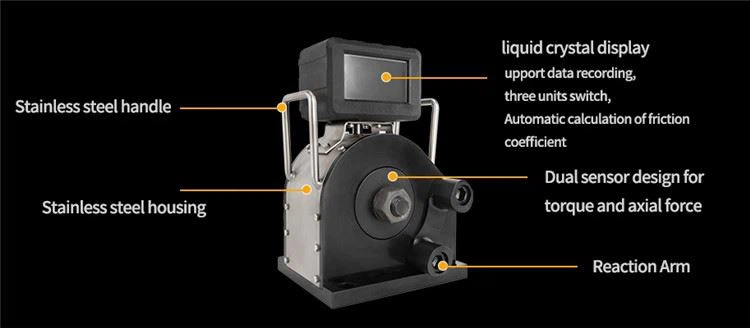

1.Touchable LCD display can show Bolt’s diameter , Torque value, Tension force value, Date and time these information.

2.Supporting Chinese and English two languages ;

3. Supporting three measurement units (N.m, 1bf.ft, kgt.m) of torque;

4. The friction coefficient can be calculated automatically;

5.Dual torque and axial force sensor design, high accuracy;

6. Large storage capacity, can save 100 sets of test data;

7. With peak hold, automatic release function;

*About Packing : Adopting the high quality plastic cases with damping sponge and bubble inside to pack wrenches and the external package is high quality cartons.The toolbox is coated with heat-shrinkable film which is made of PVC plastic, it can protect the toolbox from wear and tear, moisture and rain during transportation.

*About Shipment : We can ship out the goods by Air, by Sea, by Rail and by Express. LCL shipment and FCL shipment.

*About Warranty : The warranty period is 6 months after delivery.

*About Payment : T/T 30% deposit and the balance paid before shipment.

*About MOQ : 1 set / order.
