Electric Shear Wrench For TC Bolt
Electric Shear Wrench for TC Bolt S-30LP is a very popular one among electric shear wrenches.Large torque value with lighter machine weight , it certainly helps minimize operator fatigue.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

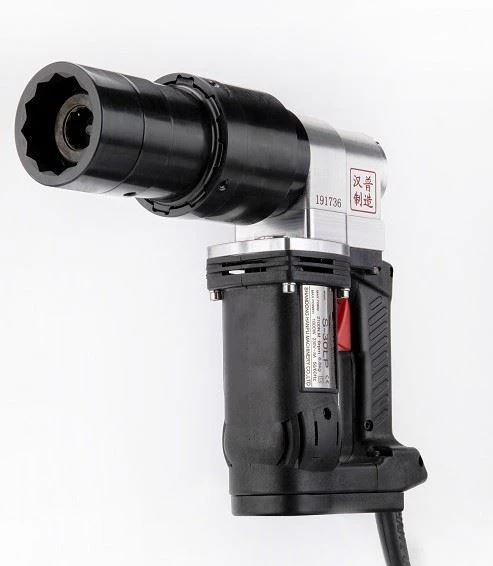

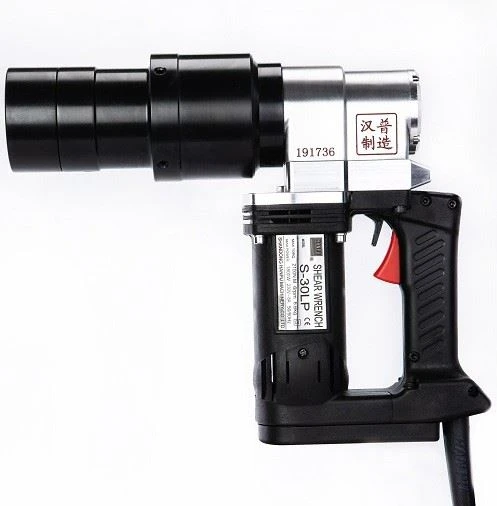

Electric Shear Wrench for TC Bolt S-30LP is a very popular one model among electric shear wrenches. Generally speaking, the larger the torque value, the heavier the wrench weight. For this wrench , its max torque value is 2100N.M , but its weight is only 6.6kg, which is more competitive than other brands' wrenches. After time verification, its performance is very stable. More and more customers would love to purchase it and they all give us the good feedback .
The above video shows the application of S-30LP in a project in Panama.
Large torque value with lighter machine weight , it certainly helps minimize operator fatigue.
Shear Wrench are used to fasten TC controlled bolts and it has an outer sockets that turns the nut in counterclock direction, while grabbing the spline of the bolt with the inner socket turning in clockwise direction.
When accurate tension level achieved, the spline snaps off, giving a visual indication of proper installation.
| Model | Frequency | Voltage | Max Current | Power Rating | Max Torque | Speed /min | Weight (main body) | Protect Class | Adaptable Bolts | ||
| S-10T | A325 | A490 | |||||||||
| S-30LP | 50-60HZ | 230V 115V | 8A 16A | 1800W | 2100N.M | 6rpm | 6.6kg | Double Insulation | M24 M27 M30 | 1'' 1-1/8'' 1-1/4'' | 1'' 1-1/8'' |
LP-series Electric Shear Wrenches for TC Bolt are specially designed and developed for foreign markets.
Germany motor, Small size, Strong power.

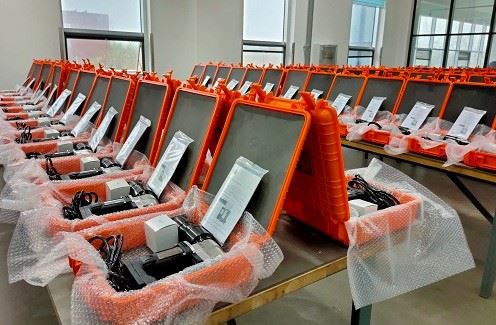

Warehouse :
