Electric Shear Wrench TC Gun
Electric Shear Wrenches are designed to be used with Tension Control Bolts, or TC Bolts. So, Electric Shear Wrench is also called " TC Gun". SR-22LP :1800W, 230V/115V, 900N.M, 20rpm/min, applied to M16,M20,M22 TC bolts in Metric and 5/8'', 3/4'', 7/8'' A325 bolts in Imperial.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

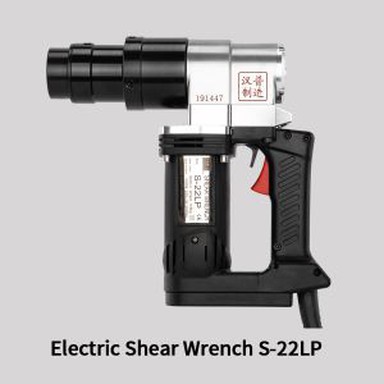

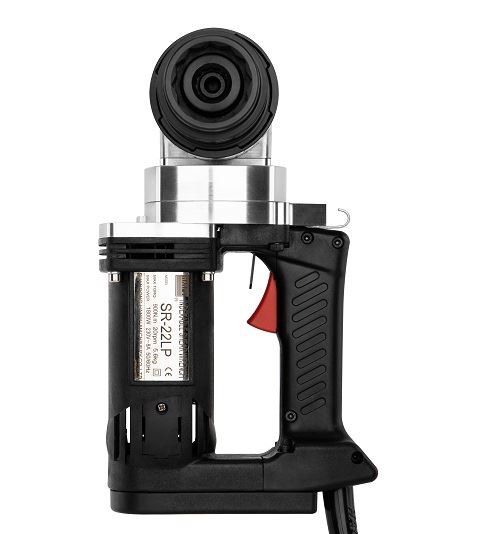

Electric Shear Wrench TC Gun SR-22LP is designed at the position where the working head is connected to the handle, and the working head can rotate 360 degrees horizontally relative to the position of the handle. It is one of the electric shear wrenches with special shape.
Samll in size , but strong in power. The weight of main boady is only 5.6kg.
Lightweight, powerful, inexpensive and highly reliable.
This TC Gun will install TC Bolts up to 7/8'' diameter. It requires 115V/230V AC power. Double insulated motor for safe operation. Sealed gear housing provides long gear life. Easy change sockets.

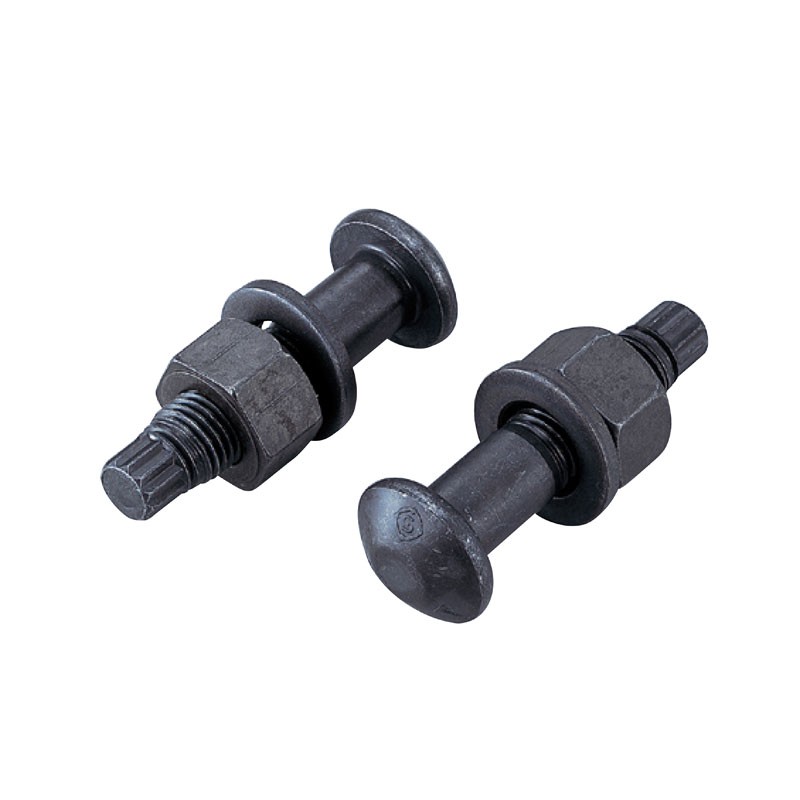

OAK Shear Wrenches are specifically designed to be used with Tension Control Twist Off Bolts. A Tension Control Bolt is a system consisting of 1 bolt, 1 nut and 1 washer, pre-assembled for delivery to the user. TC Bolts or Twist Off Bolts feature a built in tension control device (spline portion at the threaded end of the bolt). The nut and washer are removed from the bolt, then the bolt is inserted into the structure, and the washer and nut are repositioned on the bolt and finger-tightened.
Final installation is accomplished with specialized Electric Shear Wrenches / TC Guns. As the outer socket rotates clockwise tightening the nut, the inner portion of the tool grips the spline at the end of the bolt to keep the bolt from turning, and to provide the reaction torque. (The operator is not using his strength to tighten the nut.) As the nut tightens, the torque inside the tool increases until it reaches the designed shear strength, then the spline of the bolt will be twisted off.
OAK offers a wide range of Electric Shear Wrenches TC Guns to accommodate all tightening applications and is one of leading companies in the global shear wrench market.
Complete inventory system : All models and spare parts currently sold are available from stock throughout the year. So the delivery time is always short. This is always one of our advantages compared to other companies.
VR View : https://720yun.com/t/afvknqq7O2q?scene_id=31306178
