China Manufacture OEM Electrical Wrench Torque Wrench Fast Speed Tightenning Loosing High Effecience Fast Speed 3000nm 4000nm Hytorc Plarad Rad Electric Wrench
The electric torque wrench TN-25G is a New Electric Torque Wrenches. The important feature of this electric torque wrench is that the torque value can be set, and the torque is adjustable. At the same time, it has strong power and strong body. It has a maximum power of 2800W and a maximum torque of 2500N.M. The applicable bolts are M27 M30 M33, which are specially used for fastening hexagonal bolts with torque requirements, and are widely used in steel structures.
Product Introduction
Along with the 'Client-Oriented' enterprise philosophy, a rigorous high-quality control process, superior production products along with a robust R&D group, we constantly deliver premium quality products, exceptional solutions and aggressive costs for Tc Bolt Gun, Manual Torque Wrenches, Electric Powerful Torque Wrench . We have a proven track record of success in delivering high-quality products to our clients around the world. Our team of experts is committed to providing our customers with the best possible solutions to meet their unique business needs. We innovate the concept and practice of responsible management and strive to realize the journey of sustainable corporate development.
This New Electric Torque Wrenches TN-25G, with integrated digital display controller, has high control accuracy and low
error rate. It can also rotate forward and reverse, and can tighten or loosen screws. In operation, the size of the bolt diameter has a certain influence on the control accuracy. During the construction, the same type of bolt
should be used to calibrate the torque value, and it should be checked and calibrated after a period of use.
Electric Torque Wrench TN-25G
1. This electric torque wrench is equipped with a mechanical steering device. By adjusting the mechanical steering device, the inner sleeve is controlled to rotate forward and reverse to achieve tight and loose screws.
2. This electric torque wrench has an integrated digital display controller, which can control the torque and the torque is adjustable.
3. The integrated reaction arm sleeve independently developed by Hamp can make the output torque more accurate, and can increase the life of the sleeve, save volume and reduce weight.
4. The electric torque wrench has strong power, small volume and light weight. In operation, it can significantly improve work efficiency.
Electric Torque Wrench TN-25G Parameter Configuration

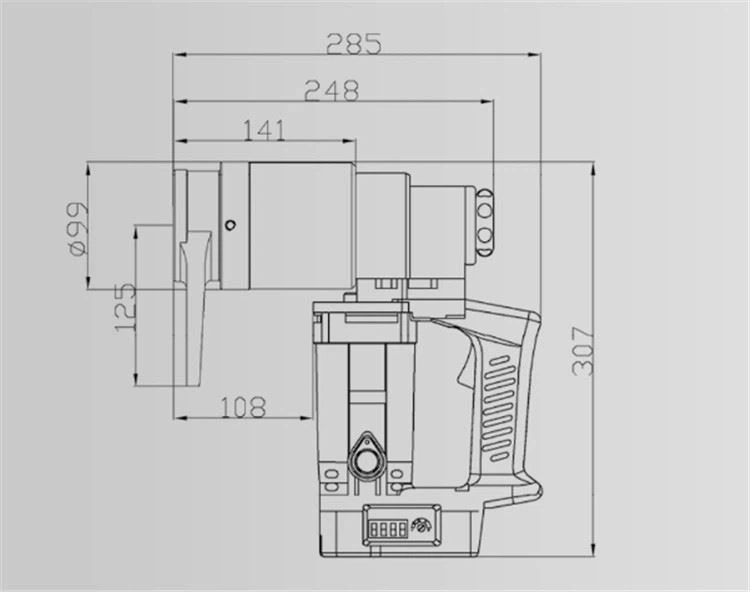

Electric Torque Wrench TN-25G Line Diagram
Model | Frequency | Voltage | Max Current | Max Power Consumption | Max Torque | Rotation Sped | Weight (Main Body) | Protect Class | Applicable Bolts | |||
S-10T | A325 | A490 | ||||||||||
TL-25G | 50-60HZ | 230V 115V | 12A 24A | 2800W | 1000-2500N.M | 5rpm | 8.5KG | Double Insulation | M27 M30 M33 | 1-1/8" 1-1/4" 1-3/8" | 1-1/8" 1-1/4" | |
Electric Torque Wrench TN-25G Parameter
This electric torque wrench TN-25G can be applied in the steel structure installation industry, bridge construction, power construction, railway construction, automobile assembly
and other industries.
1. The company has dedicated after-sales customer service, 24 hours a day to serve you.
2. The company has a special quality inspection department, and every production link from raw materials to finished products will be inspected by quality inspection.
3. For the customer's order, there will be a corresponding tester to test the product.
4. For orders that exceed spare inventory, the minimum delivery period of 50 units or less is 10~15 days, the delivery period of 50-150 units is 20~30 days, and customized orders are 7-14 days.
Shandong Machinery Industrial Co., Ltd. is located in Qihe Economic Development Zone, Dezhou City. After more than 20 years of innovation and development, the company now has a 62-acres industrial park and a 30,000-square-meter production R & D workshop, introducing a large number of f high-end processing equipment made in Switzerland, Germany, and Japan. company has become a huge domestic electric wrench production base.
With the development of technology, more and more new processes are applied to production. These new processes are also inspiring us to continuously improve ourselves to meet the more stringent requirements in high-end fields such as nuclear energy, wind power, and oil pipelines. Manufacturing has always been committed to the experience of first-line operators. Small size, light weight, sturdiness and durability have become the distinctive features of brand!
Company honor and qualification :
