Electric Corner Shear Wrench SC-30B is a special electric torsional shear wrench. Its working head forms a 180-degree horizontal straight line with the machine body. Such a shape design effectively avoids the inconvenience caused to the construction environment by the limited vertical space, greatly improves the work efficiency, and reduces the construction difficulty. This model is one of's Corner Type Electric Shear Wrenches. It is suitable for S10T bolts of four specifications of M20 / M22 / M24 /M30 /M27/M30 and the size is 5/8 '', 3/4 '' , 7/8 '', 1 '' ,1-1/8 '',A325 bolts.

As everyone knows, electric shear wrenches are widely used in real life. In the face of various construction environments, sometimes due to the limitation of the construction space, the builders are really powerless. Not only the work efficiency is low, but also it is easy to cause labor injury to the constructor. Electric Corner Shear Wrench SC-30B is a practical torsional shear wrench with a special shape developed by based on the actual construction environment. Its working head is on the same level as the machine body, and the machine body will not hinder the work of the working head when working in a narrow space. Its working head is 207mm long, which is shorter than conventional models, and the machine body is longer. The total length of the whole machine is 442mm, which is shorter than the handle of a general manual shear wrench. It can be said that it is a very smart electric wrench. The following are physical and line drawings of this machine.

Photo of Electric Corner Shear Wrench SC-30B

The Size of Electric Corner Shear Wrench SC-30B

1.Simple design. The working head of this machine is 180 degree horizontal and straight with the machine body. This design breaks the design concept of conventional models, and is dedicated. Allows the constructor to be comfortable and efficient without fear of the narrow vertical construction environment ;

2.This Electric Corner Shear Wrench SC-30B is a type of electric torque wrench. It has the same usage and function as the conventional torsional shear wrench.

3.The motors and bearings of this machine are high-end imported products with reliable quality and stable performance;

4. In the design of the handle, both the size and shape of the handle make full use of ergonomic principles to make the operator more comfortable and safer.

Model : SC-30B

Frequency : 50-60HZ
Voltage : 230V/115V AC

Max Current : 10A/20A
Max Power Consumption :2200W
Max Torque : 2100N.M
Rotate Speed : 6RPM

Weight (Main Body) : 7KG
Protect Class : Double Insulation

Adaptable Bolts : S-10T(M16,M20,M22,M24,M27,M30); A325(5/8",3/4",7/8"1-1/8")

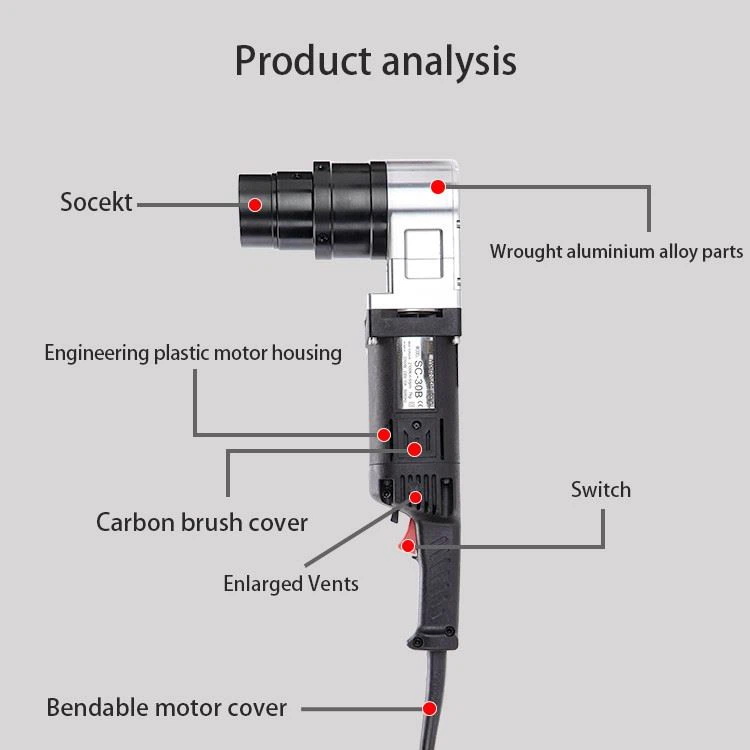

The Analytical Diagram of Electric Corner Shear Wrench SC-30B

The Detail of Electric Corner Shear Wrench SC-30B

This machine are mainly used in steel structure installation, equipment installation, electric power construction, bridge construction, railway construction, automobile assembly and other industries too.

Packaging, Shipment and Delivery :

1. Packaging : We always adopt the high quality plastic cases with damping sponge and bubble inside to pack wrenches and the external package is high quality cartons.

2. Shipment : Any form of transportation is acceptable. You can feel free to choose by Air, by Sea, by Rail and by Express according to the order quantity and delivery time.

3. Delivery : company established a minimum inventory system. All models and spare parts sold are in stock throughout the year. Small and medium batch orders can be shipped at any time, and large batch orders can ensure timely supply of parts. Generally, the delivery time is 7~15days per order.
