Labor Saving Wrench/Hand Torque Multiplier (SV11NS series)
Shear wrench is used to tighten TC bolts. So it is also called the TC wrench or TC Gun. In Shandong company , there are total 3 models for Hand tool TC guns : F-22, F-24 and F-30.
Product Introduction
As a company providing Electric Torque Wrench M30, 7 8 Shear Wrench, Shear Wrench services, we always value reputation, quality, and customers. We take creating an excellent modern enterprise as our development goal, take the revitalization of national industry as our responsibility, and keep making progress. After a long period of hard work, we have won newcomers from our customers with high-quality products and services and formed our own unique core competitiveness. We continue to actively seek opportunities to improve the effectiveness and efficiency of the enterprise process and continuously improve the work quality of the enterprise. Technical elites have accumulated rich experience in research, development and marketing for the company and constantly push the old and bring forth the new to meet the requirements of different customers. We pride ourselves on our agility and ability to adapt to changing market conditions. A number of technologies pioneered by the company have filled the gaps in the country and broke the monopoly of foreign technology.
Here we will show you the TC gun be as a hand tool. The manual wrench is mainly composed of a working head and a handle. The working head is mainly composed of a planet carrier assembly, a ratchet assembly and an inner and outer sleeve. How does it work ?
Shear wrenches have an inner and outer socket. The inner socket engages the spline, while the outer socket rotates the nut, with both sockets twisting in opposite directions, the spline of the bolt shears off, once the appropriate tension level has been achieved.
Under what circumstances would hand TC gun be used?
--- Manual shear wrench is generally used in situations where the number of bolts is small or the space is small and the electric wrench cannot be operated. Angles, corners, etc. of steel structure links.
F-22 :

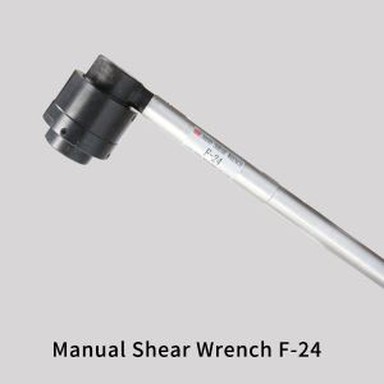

F-24 :
F-30 :
Parameters of three models :
| Model | Max Torque | Weight (kg) | Applicable Bolts | |
| S-10T | A325 | |||
| F-22 | 700N.m | 2.62 | M12 M16 M20 M22 | 1/2'' 5/8'' 3/4'' 7/8'' |
| F-24 | 900N.m | 3.18 | M16 M20 M22 M24 | 5/8'' 3/4'' 7/8'' 1'' |
| F-30 | 2100N.m | 4.62 | M24 M27 M30 | 1'' 1-1/8'' 1-1/4'' |
provide a large range of shear wrenches for customers :
Contact Us :
VR Viewing : https://720yun.com/t/afvknqq7O2q?scene_id=31306178
We adhere to the Labor Saving Wrench/Hand Torque Multiplier (SV11NS series) business as the center, with the goal of improving the overall benefits of customers, and we are dedicated to providing fast, economical and thoughtful services to domestic and foreign customers. We uphold the development philosophy of 'seeking truth, being pragmatic, and innovative', and stick to the customer-oriented development ideas, improve the quality of products and services in order to fully meet customer needs. Whatever your company's needs, our specialized support is on-hand to deliver the right solution for you.
