Electric Torque Wrench M20

Generally, an electric wrench that can set a torque value is also called a Constant Torque electric wrench. Electric torque wrench is designed to tighten large hexagon high-strength bolts. When using, adjust the torque value to the required torque value before tightening the bolt. Now introduce the electric torque wrench TL-5B. This wrench is equipped with a torque controller, and the output torque can be adjusted within a certain range. Because its applicable sleeve is M16 and M20, it is also called Electric Torque Wrench M16 and Electric Torque Wrench M20.

Electric Torque Wrench TL-5B (Electric Torque Wrench M20) is used to tighten large hexagon bolts with torque requirements. It has a torque controller and a mechanical steering gear, which can adjust the torque, and can also rotate forward and reverse. Tightening and loosening bolts can be achieved by simply adjusting the mechanical steering gear. When working, the machine has no impact and requires a reaction arm to provide force. The output part is a standard square head, which can be equipped with a variety of universal sleeves or joints.

Electric Torque Wrench TL-5B

Electric Torque Wrench TL-5B （Electric Torque Wrench M20）Characteristics ：

1. The distance of the reaction arm of the electric torque wrench TL-5B is lengthened. After reaching the set torque value, the wrench automatically stops. The machine has no impact force and requires a reaction arm to provide the force;

2. With integrated digital display controller, the repeat control accuracy can reach up to ± 3%. Set the required torque in advance when working, and the machine will automatically stop rotating when the torque is reached;

3. Electric torque wrench TL-5B can rotate forward and reverse. Instead of the traditional forward rotation of the motor, use more advanced mechanical reverse rotation to reduce motor loss and improve reliability. A mechanical steering gear is installed at the head position, and forward rotation and reverse rotation are achieved by adjusting the mechanical steering gear.

4. The whole machine weighs 4.5KG, lighter in weight, smaller in size and strong in power, which can significantly improve labor efficiency. This wrench can be fitted with a variety of universal sockets or joints. It has Strong versatility, suitable for the situation of small batches and multiple varieties of bolts.

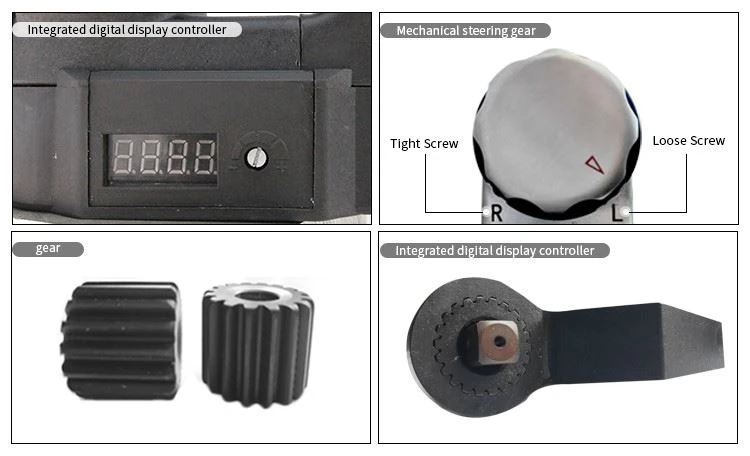

Electric Torque Wrench TL-5B Parts Display

Electric Torque Wrench TL-5B Parameter Configuration

Electric Torque Wrench TL-5B Line Diagram

Electric Torque Wrench TL-5B Parameter

adheres to the principle of "service first, quality assurance", and strives to improve every detail of the product.

1. Forged aluminum alloy components: lightweight materials, aviation aluminum alloy. Compared with traditional forging, the strength of hot forging is greatly improved;

2. The motor housing and handle are made of industrial reinforced nylon material, which has higher strength and toughness;

3. Safety ring design, easy to carry, can increase the safety factor and ensure the safety and orderly construction;

4. Square drive with reaction arm sleeve. The sleeve is made of high-strength steel with a service life of more than 100,000 times;

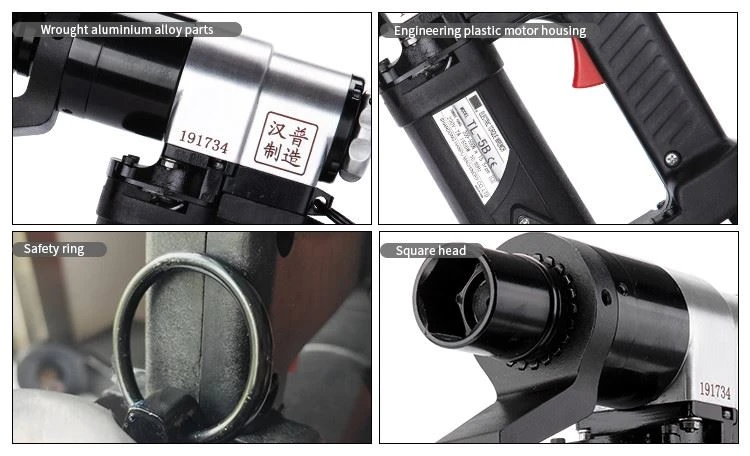

Electric Torque Wrench TL-5B Detail Pictures Display

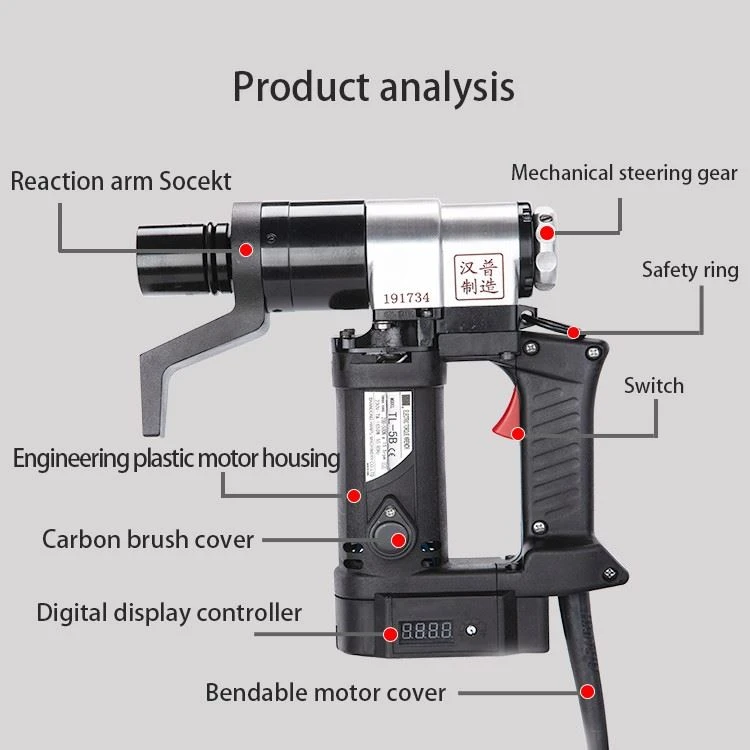

Electric Torque Wrench TL-5B Analytical Diagram

For the company to sell the spare parts of the machine inventory system, to ensure the supply of spare parts for 7 years, the majority of customers can be completely free from worry ,can strictly control the delivery time and ensure the shortest delivery time in the industry. can put into production at any time to ensure customer progress.

can strictly control the delivery time and ensure the shortest delivery time in the industry. can put into production at any time to ensure customer progress.
