Torque Control Wrenches

TL-9B belongs to one kind of Electric Torque Wrench. Due to it can preset the torque value in practical construction, it also be called “Torque Control Wrench”. Torque Control Wrench can complete the tightening work with torque requirement. It mainly used to tighten and loosen large hexagon bolts. Its power source is electricity. It can display the torque value.

Model : TL-9B

Frequency : 50-60HZ

Voltage : 230V / 115V AC

Max Current : 7A/14A

Max Power Consumption : 1650WW

Torque Range : 400-900N.M

Rotation Speed : 9.5rpm

Weight (Main Body) : 5.3KG

Square Drive : 25.4*25.4mm (1＂*1＂)

Protect Class : Double Insulation

Applicable Bolt : S-10T (M20、M22、M24) ; A325 (3/4＂、7/8＂、1＂) ; A490 (3/4＂、7/8＂)

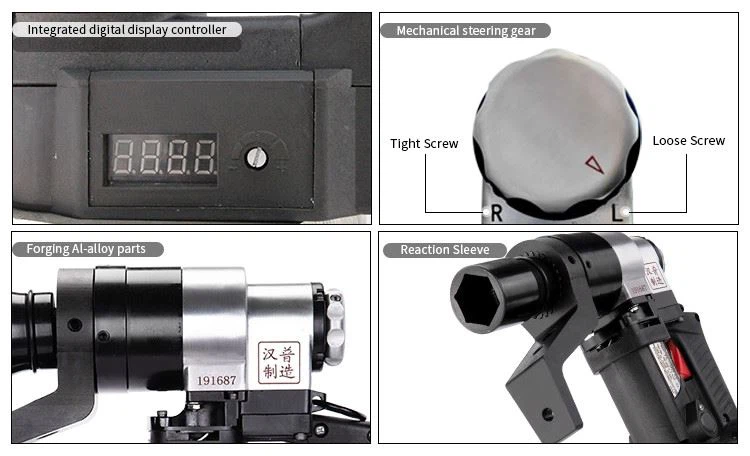

1.This wrench is compact in design, small in size, light in weight and easy to carry.

2.Its lifetime is very long ;

3.It has a displayer which can show the real-time torque value. And we can certainly preset the torque value when working if needed ;

4.This wrench is adopt the principle of reaction force. It has a L-shape reaction arm. When working , the operator have to find a support point to prevent the reaction arm turn around.

5. It adopts the standard square drive, so that the suitable sockets can be bought anywhere, which is very convenient for operators.

6. The accuracy of the repeated torque value of this wrench can be controlled within ± 3%.
