Tension Control Bolt TC Shear Wrench

Tension Control Bolt TC Shear Wrenches are designed to be used with Tension Control Bolts, or TC Bolts. S-22LP : Power Rating 1800W, Max Torque 900N.M, Ro Speed 20rpm/min, Main body weight 5.0kg.

Send Inquiry

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

OAK Tension Control Bolt TC Shear Wrench is specifically designed to be used with Tension Control (TC) Bolts. It has an outer socket that turns the nut counterclockwise, while grabbing the spline of the bolt with the inner socket turning it clockwise. When the proper tension level has been achieved the spline snaps off giving you a visual indication of proper installation.

Features:

*Highly versatile shear wrench

*Adaptable Metric bolt diameters : M16, M20, M22

*Adaptable Imperial bolt diameters : 5/8”, 3/4’’, 7/8”

*Lightweight : only 5.0kg (main body)

*Available in either 110/115v or 220/230v

*Double Insulated (Class II)

*Non-impacting tool with very low vibration levels

*No risk of HAVS

*CE marked

Electric Shear Wrench -- Shandong S-22LP Drawing

Electric Shear Wrench -- Brand

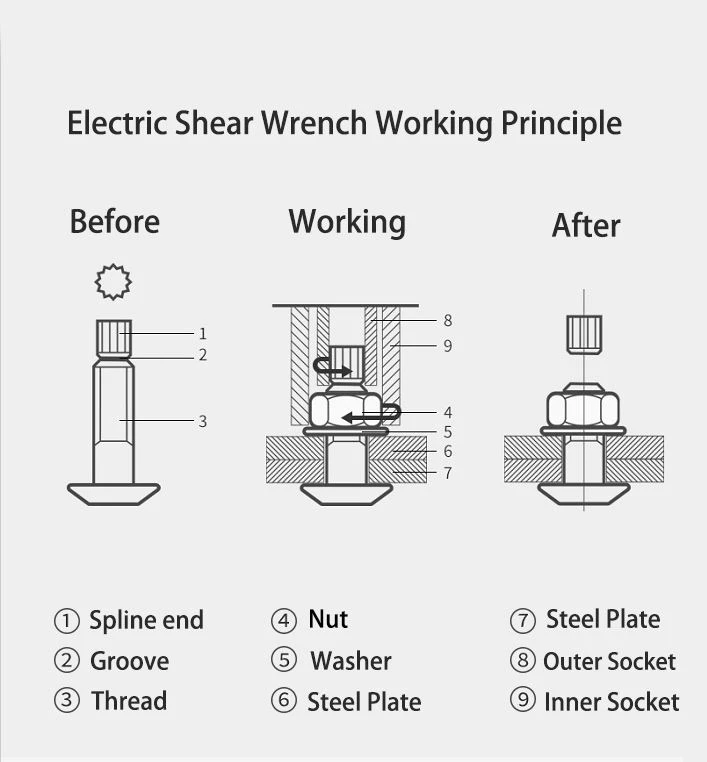

Working Principle :

Step 1 : Shows the normal shape of the TC (Torque Control) Bolt which has spline part extended at the end.

Step 2 : Shows Shear wrench special socket is applied at the nut of TC Bolt. The internal socket grips the spline part, while external socket grips and rotates the nut to tighten the Bolt.

Step 3 : After the torque tightening is achieved the extended spline part of the bolt is sheared off from the bolt and the joints is successfully tightened to the required torque.

Electric Shear Wrench S-22LP

One of its most characteristics is its original German motor ! As everyone knows , Germany is a very powerful manufacture country. Their motors are powerful , stable and durable.

Geman Motor

HANPU is a world leader in the manufacture of Electric Shear Wrenches for the following industries:

Alternative Energy & Utilities

Transportation

Bridge Construction

Automotive

Construction

Plant Engineering

General Industry

Successfull Cases

Hanpu offers a wide range of Tension Control Bolt TC Shear Wrenches to accommodate all tightening applications and is one of leading companies in the global shear wrench market.
