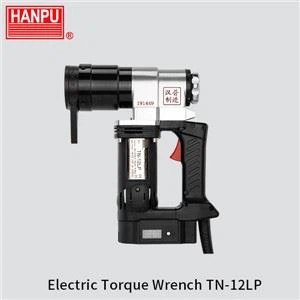

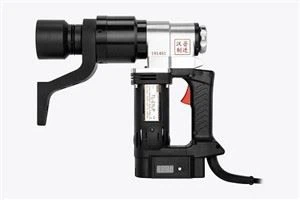

Electric Torque Wrench For High-strength Bolts M12 To M56

Electric Torque Wrench For High-strength Bolts M12 To M56

Electric torque control wrench is widely used in many industries:
In the construction of bridges. The large hexagon bolts connected to the steel structure generally have certain requirements for torque, and it is very suitable to use this wrench to fix the type;
In the construction and installation of power plants, bolts can be easily tightened.

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

Production Features:

1) Small volume, light weight, suitable for high altitude and narrow space work.

2) Digital control torque, high repeated accuracy and stability.

3) Can control both torque value and rotational angle.

4) Torque and angle could be separately or simultaneously controlled.

5) Adopt more advanced mechanical inverse rotation, reduce motor loss, improve reliability

Hanpu electric wrench

Mainly Models:

Electric torque control wrench for high-strength hexagon bolt, we have two series: L series and Y series.

the specific parameter as follows:

L series

Model	TL-3B	TL-5B	TL-9B	TL-7LP	TL-12LP	TL-21LP	TL-35G	TL-60G	TL-100G
Freq	50-60HZ	50-60HZ	50-60HZ	50-60HZ	50-60HZ	50-60HZ	50-60HZ	50-60HZ	50-60HZ
Voltage	230V 115V	230V 115V	230V 115V	230V 115V	230V 115V	230V 115V	230V 115V	230V 115V	230V 115V
Max Current	6A 12A	7A 14A	7A 14A	8A 16A	8A 16A	8A 16A	12A 24A	12A 24A	12A 24A
Max Power Consumption	1300W	1650W	1650W	1800W	1800W	1800W	2800W	2800W	2800W
Torque Range	100-300N.m	200-500N.m	400-900N.m	350-700N.m	500-1200N.m	900-2100N.m	1700-3500N.m	2000-6000N.m	5000-10000N.m
Ro Speed (min-1)	24rpm	15.5rpm	9.5rpm	15rpm	9rpm	6rpm	2.5rpm	0.6rpm	0.3rpm
Weight (main body)	4.4KG	4.5KG	5.3KG	4.7KG	5.5KG	6.6KG	12KG	18.5KG	21KG
Protect Class	Double Insulation			Double Insulation			Double Insulation
Adaptable Bolts Dia	M12, M16	M16, M20	M20, M22, M24	M20, M22	M22, M24	M27, M30	M30, M33, M36	M42, M45, M48	M48, M52, M56

Y series

Model	TN-3B	TN-5B	TN-9B	TN-7LP	TN-12LP	TN-21LP	TN-12G	TN-25G	TN-35G
Freq	50-60HZ	50-60HZ	50-60HZ	50-60HZ	50-60HZ	50-60HZ	50-60HZ	50-60HZ	50-60HZ
Voltage	230V 115V	230V 115V	230V 115V	230V 115V	230V 115V	230V 115V	230V 115V	230V 115V	230V 115V
Max Current	6A 12A	7A 14A	7A 14A	8A 16A	8A 16A	8A 16A	12A 24A	12A 24A	12A 24A
Max Power Consumption	1300W	1650W	1650W	1800W	1800W	1800W	2800W	2800W	2800W
Torque Range	100-300N.m	200-500N.m	400-900N.m	350-700N.m	500-1200N.m	900-2100N.m	500-1200N.m	1000-2500N.m	1700-3500N.m
Ro Speed (min-1)	24rpm	15.5rpm	9.5rpm	15rpm	9rpm	6rpm	10.5rpm	5rpm	2.5.rpm
Weight (main body)	4.4KG	4.5KG	5.3KG	4.7KG	5.5KG	6.6KG	7KG	8.5KG	12KG
Protect Class	Double Insulation			Double Insulation			Double Insulation
Adaptable Bolts Dia	M12, M16	M16, M20	M20, M22, M24	M20, M22	M22, M24	M27, M30	M22, M24	M27, M30, M33	M30, M33, M36

Qualification Certificate:

hanpu certificate

FAQ:

Q: How to pack the product?

A: We use plastic engineering plastic material and heat shrinkable film, with packing box and wooden bracket.

Q: What is your delivery date?

A: We usually take 7-15 days. Large orders are subject to contract negotiation.

Q: What about the quality of your products?

A: We guarantee the quality of our products, and we have our own research and development team. The raw materials and production process are of high standard. You can rest assured.

Q: How is your after-sale service?

A: We have A special after-sales service to solve the problems of use and maintenance.

hanpu electric torque wrench

Wide Application Area

torque wrench application

About Our Factory

OAK International Trade (Jinan) Co., Ltd has a good market reputation. Based on professional after-sales and technical services team, many years' constant technology innovation, OAK has been approved by customers from abroad and domestic. The company is based on sincerity, innovation and development as the principle, keep improving, continue the high quality. With high quality after sales service, in good faith for all customers to solve their worries.

20220607141553c303d23a3d3b42ba85111dffbd73b773

If you have any more questions for the electric torque control wrench, please let me know, we will give you a satisfactory answer, our email address: marketing@hanputool.com
