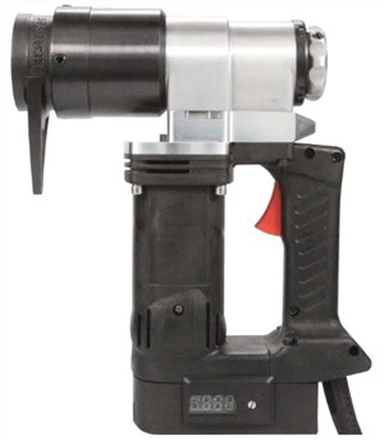

Electric Torque Wrench, Nut Bolt Tightening Machine Electric
Oak electric torque wrenches are widely used in a variety of steel structure industries,such as equipment installation, electric power construction, bridge construction, railway construction, car assembly and other industries.
Applicable high-strength bolt model range: M12-M56.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Catalog
Oak electric torque wrenches are widely used in a variety of steel structure industries,such as equipment installation, electric power construction, bridge construction, railway construction, car assembly and other industries.
In order to better serve the needs of each industry, Oak specially designed a variety of models to ensure that each customer can more easily complete the bolt fastening.
Which industry do you work in? Which type of bolt do you need to tighten?
Mainly models you can choose:
ELECTRIC TORQUE WRENCH TL-3B:
Small volume, light weight, easy to control, adopt digital controller, accurate and reliable.
Max power consumption: 1300w
torque range: 100-300N.m
Ro Speed (min-1): 24rpm
Weight (main body): 4.4KG
Adaptable Bolts Dia: S-10T: M12, M16
A325: 1/2", 5/8"
A490: 1/2"
More details, please contact us.
ELECTRIC TORQUE WRENCH TL-5B:
Small volume, light weight, easy to control, adopt digital controller, accurate and reliable.
Max power consumption: 1650w
torque range: 200-500N.m
Ro Speed (min-1): 15.5rpm
Weight (main body): 4.5KG
Adaptable Bolts Dia: S-10T: M16, M20
A325: 5/8", 3/4"
A490: 5/8"
More details, please contact us.
ELECTRIC TORQUE WRENCH TL-9B:
Small volume, light weight, easy to control, adopt digital controller, accurate and reliable.
Max power consumption: 1650W
torque range: 400-900N.m
Ro Speed (min-1): 9.5rpm
Weight (main body): 5.3KG
Adaptable Bolts Dia: S-10T: M20, M22, M24
A325: 3/4", 7/8", 1"
A490: 3/4", 7/8"
More details, please contact us.
ELECTRIC TORQUE WRENCH TL-7LP:
Digital control torque, high repeated accuracy and stabilty. Can control both torque value and rotational angle. Torque and angle can be separately control, also can be controled at the same time.
Max power consumption: 1800W
torque range: 350-700N.m
Ro Speed (min-1): 15rpm
Weight (main body): 4.7KG
Adaptable Bolts Dia: S-10T: M20, M22
A325: 3/4", 7/8"
A490: 3/4"

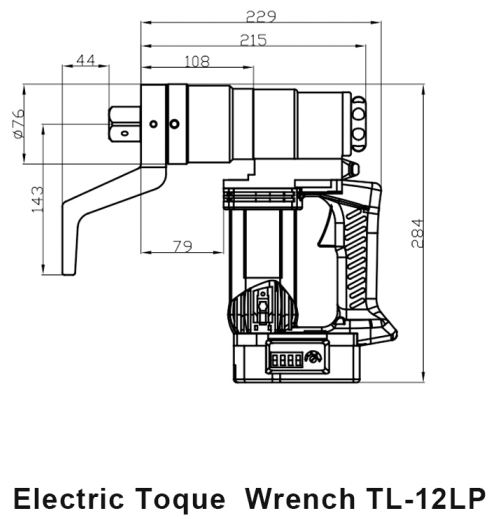

ELECTRIC TORQUE WRENCH TL-12LP:
Digital control torque, high repeated accuracy and stabilty. Can control both torque value and rotational angle. Torque and angle can be separately control, also can be controled at the same time.
Max power consumption: 1800W
torque range: 500-1200N.m
Ro Speed (min-1): 9rpm
Weight (main body): 5.5KG
Adaptable Bolts Dia: S-10T: M22, M24
A325: 7/8", 1"
A490: 7/8", 1"
ELECTRIC TORQUE WRENCH TL-21LP:
Digital control torque, high repeated accuracy and stabilty. Can control both torque value and rotational angle. Torque and angle can be separately control, also can be controled at the same time.
Max power consumption: 1800W
torque range: 900-2100N.m
Ro Speed (min-1): 6rpm
Weight (main body): 6.6KG
Adaptable Bolts Dia: S-10T: M27, M30
A325: 1-1/8", 1-1/4"
A490: 1-1/8", 1-1/4"
ELECTRIC TORQUE WRENCH TL-35G:
Digital control torque, high repeated accuracy and stabilty. Can control both torque value and rotational angle. Torque and angle can be separately control, also can be controled at the same time.
Max power consumption: 2800W
torque range: 1700-3500N.m
Ro Speed (min-1): 2.5rpm
Weight (main body): 12KG
Adaptable Bolts Dia: S-10T: M30, M33, M36
A325: 1-1/4", 1-3/8", 1-1/2"
A490: 1-1/4", 1-3/8"
More details, please contact us.
ELECTRIC TORQUE WRENCH TL-60G:
Digital control torque, high repeated accuracy and stabilty. Can control both torque value and rotational angle. Torque and angle can be separately control, also can be controled at the same time.
Max power consumption: 2800W
torque range: 2000-6000N.m
Ro Speed (min-1): 0.6rpm
Weight (main body): 18.5KG
Adaptable Bolts Dia: S-10T: M42, M45, M48
A325: 1-5/8",1-3/8", 2"
A490: 1-5/8",1-3/8
More details, please contact us.

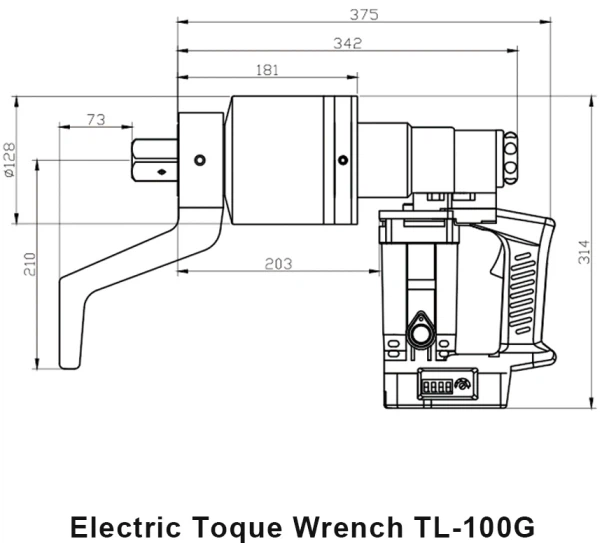

ELECTRIC TORQUE WRENCH TL-100G:
Digital control torque, high repeated accuracy and stabilty. Can control both torque value and rotational angle. Torque and angle can be separately control, also can be controled at the same time.
Max power consumption: 2800W
torque range: 5000-10000N.m
Ro Speed (min-1): 0.3rpm
Weight (main body): 21KG
Adaptable Bolts Dia: S-10T: M48, M52, M56
A325: 2", 2-1/8", 2-1/4"
A490: 2", 2-1/8"
ELECTRIC TORQUE WRENCH TN-3B:
Small volume, light weight, easy to control.
Adopt digital controller, accurate and reliable.
Max power consumption: 1300W
torque range: 100-300N.m
Ro Speed (min-1): 24rpm
Weight (main body): 4.4KG
Adaptable Bolts Dia: S-10T: M12, M16
A325: 1/2", 5/8"
A490: 1/2"
ELECTRIC TORQUE WRENCH TN-5B:
Small volume, light weight, easy to control.
Adopt digital controller, accurate and reliable.
Max power consumption: 1650W
torque range: 200-500N.m
Ro Speed (min-1): 15.5rpm
Weight (main body): 4.5KG
Adaptable Bolts Dia: S-10T: M16, M20
A325: 5/8", 3/4"
A490: 5/8"

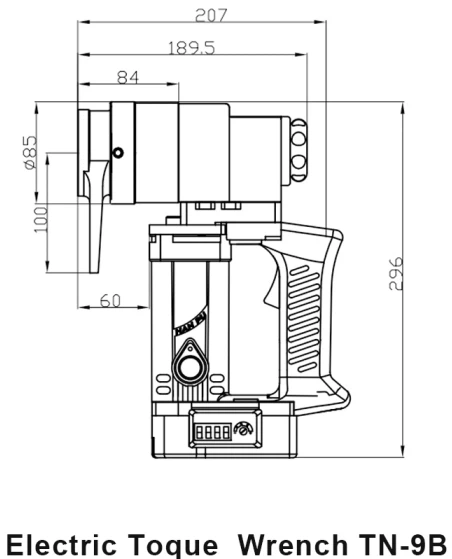

ELECTRIC TORQUE WRENCH TN-9B:
Small volume, light weight, easy to control.
Adopt digital controller, accurate and reliable.
Max power consumption: 1650W
torque range: 400-900N.m
Ro Speed (min-1): 9.5rpm
Weight (main body): 5.3KG
Adaptable Bolts Dia: S-10T: M20, M22, M24
A325: 3/4", 7/8", 1"
A490: 3/4", 7/8"
ELECTRIC TORQUE WRENCH TN-7LP:
Small volume, light weight, suitable for high altitude and narrow space work. Digital control, high repeated accuracy and stability. Can control both torque value and rotational angle. Torque and angle could be separately or simultaneously controlled.
Max power consumption: 1800W
torque range: 350-700N.m
Ro Speed (min-1): 15rpm
Weight (main body): 4.7KG
Adaptable Bolts Dia: S-10T: M20, M22
A325: 3/4", 7/8"
A490: 3/4"
More details, please contact us.
ELECTRIC TORQUE WRENCH TN-12LP:
Small volume, light weight, suitable for high altitude and narrow space work. Digital control, high repeated accuracy and stability. Can control both torque value and rotational angle. Torque and angle could be separately or simultaneously controlled.
Max power consumption: 1800W
torque range: 500-1200N.m
Ro Speed (min-1): 9rpm
Weight (main body): 5.5KG
Adaptable Bolts Dia: S-10T: M22, M24
A325: 7/8", 1"
A490: 7/8", 1"

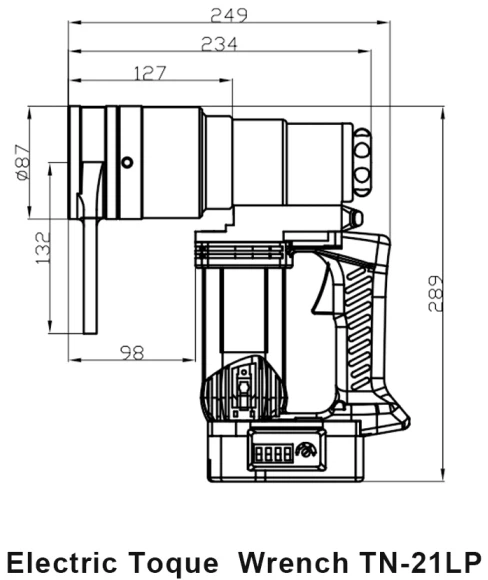

ELECTRIC TORQUE WRENCH TN-21LP:
Small volume, light weight, suitable for high altitude and narrow space work. Digital control, high repeated accuracy and stability. Can control both torque value and rotational angle. Torque and angle could be separately or simultaneously controlled.
Max power consumption: 1800W
torque range: 900-2100N.m
Ro Speed (min-1): 6rpm
Weight (main body): 6.6KG
Adaptable Bolts Dia: S-10T: M27, M30
A325: 1-1/8", 1-1/4"
A490: 1-1/8", 1-1/4"

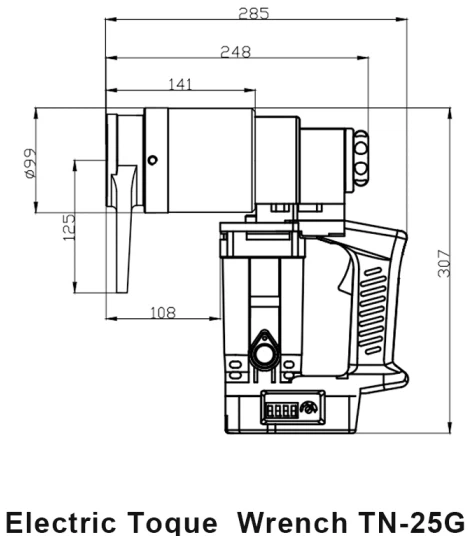

ELECTRIC TORQUE WRENCH TN-25G:
Digital control torque, high repeated accuracy and stabilty. Can control both torque value and rotational angle. Torque and angle can be separately control, also can be controled at the same time.
Max power consumption: 2800W
torque range: 1000-2500N.m
Ro Speed (min-1): 5rpm
Weight (main body): 8.5KG
Adaptable Bolts Dia: S-10T: M27, M30, M33
A325: 1-1/8", 1-1/4", 1-3/8"
A490: 1-1/8", 1-1/4"
ELECTRIC TORQUE WRENCH TL-35G:
Digital control torque, high repeated accuracy and stabilty. Can control both torque value and rotational angle. Torque and angle can be separately control, also can be controled at the same time.
Max power consumption: 2800W
torque range: 1700-3500N.m
Ro Speed (min-1): 2.5rpm
Weight (main body): 12KG
Adaptable Bolts Dia: S-10T: M30, M33, M36
A325: 1-1/4", 1-3/8", 1-1/2"
A490: 1-1/4", 1-3/8"
