Nut Bolt Tightening Torque Machine

There are many types of torque wrenches, such as manual torque wrench, hydraulic torque wrench, wireless torque wrench, impact torque wrench, and the more popular electric torque wrench. Today, I will take you to learn about the Hanpu electric torque wrench produced by Shandong Hanpu and sold by Oak International.

Send Inquiry Chat Now

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

Products Description

Hanpu electric torque wrench is mainly divided into two series, Y series and L series, the difference between the two mainly lies in the design of the reaction arm and the difference of the socket.
The Y series sockets are specially designed and produced by Hamp, which is only produced by Hamp, and the Y series electric torque wrench is more suitable for the denser bolt groups of high-strength bolts.
L series sockets can be used in common with other brands and can be purchased anywhere in the market, and L series electric torque wrenches are more suitable for construction environments with large bolt spacing.

The following figure shows the difference between the reaction arms of the two wrenches:

Y Series

1661844017803

The Difference Between Y and L

L Series

Features of Shandong Hanpu Electric Torque Wrench:

Small size, light weight, easy to control;

Using a special motor, the work efficiency is higher;

Using digital display controller, high repeatability;

Each wrench can continuously tighten more than 100,000 bolts.

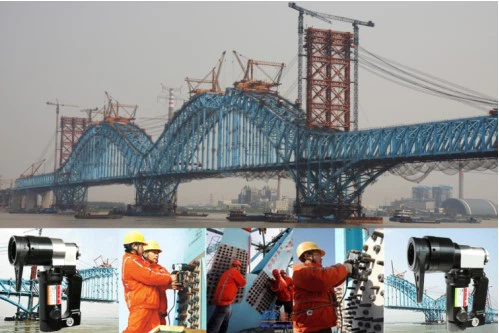

bridgewrench

Main Hot-sale Models

Y Series

Model	Torque Range	RO Speed	Weight	Adaptable Bolts
TN-3B	100-300 N.m	24 rpm	4.4 KG	M12, M16(1/2", 5/8")
TN-5B	200-500 N.m	15.5 rpm	4.5 KG	M16, M20(5/8", 3/4")
TN-9B	400-900 N.m	9.5 rpm	5.3 KG	M20, M22, M24(3/4", 7/8", 1")
TN-7LP	350-700 N.m	15 rpm	4.7 KG	M20, M22(3/4", 7/8")
TN-12LP	500-1200 N.m	9 rpm	5.5 KG	M22, M24( 7/8", 1")
TN-21LP	900-2100 N.m	6 rpm	6.6 KG	M27, M30(1-1/8", 1-1/4")
TN-25G	1000-2500 N.m	5 rpm	8.5 KG	M27, M30, M33(1-1/8", 1-1/4",1-3/8")
TN-35G	1700-3500 N.m	2.5 rpm	12 KG	M30, M33, M36(1-1/4", 1-3/8", 1-1/2")
			L Series
Model	Torque Range	RO Speed	Weight	Adaptable Bolts
TL-3B	100-300 N.m	24rpm	4.4KG	M12, M16(1/2", 5/8")
TL-5B	200-500 N.m	15.5rpm	4.5KG	M16, M20(5/8", 3/4")
TL-9B	400-900 N.m	9.5rpm	5.3KG	M20, M22, M24(3/4", 7/8", 1")
TL-7LP	350-700 N.m	15rpm	4.7KG	M20, M22(3/4", 7/8")
TL-12LP	500-1200 N.m	9rpm	5.5KG	M22, M24( 7/8", 1")
TL-21LP	900-2100N.m	6rpm	6.6KG	M27, M30(1-1/8", 1-1/4")
TL-25G	1000-2500 N.m	5rpm	9 KG	M27, M30, M33(1-1/8", 1-1/4",1-3/8")
TL-35G	1700-3500N.m	2.5rpm	12KG	M30, M33, M36(1-1/4", 1-3/8", 1-1/2")
TL-60G	2000-6000N.m	0.6rpm	18.5KG	M42,M45, M48(1-5/8", 1-3/8", 2")
TL-100G	5000-10000N.m	0.3rpm	21KG	M48, M52, M56(2", 2-1/8", 2-1/4")

Our Advantages

Factory direct sales, the price is more favorable;
There is a professional technical research and development team, which can be specially customized;
Perfect production system, sound testing system;
With safety stock, more timely delivery;
The aftermarket supply of each model is at least seven years;
7*24 hours professional online customer service free service.
